Anarduino Mini Details

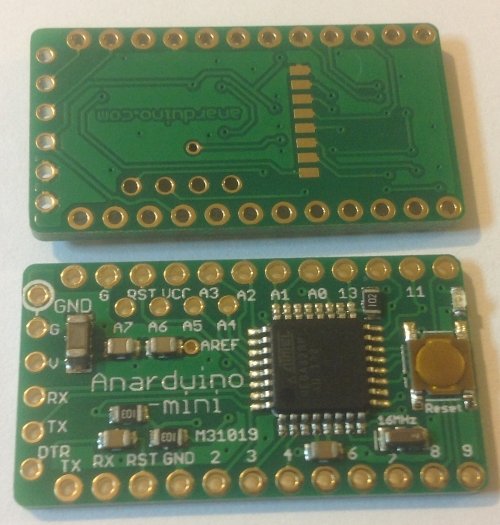

Anarduino Mini The Anarduino Mini is a tiny module, fully Arduino IDE compatible running at 16Mhz. It provides a 6-pin header interconnect for interface with a standard FTDI type USB to UART (or similar) module or cable. It also provides pinouts for all GPIOs—including A6,A7. It supports the HopeRF RFM73 2.4G radio which mounts directly on the bottom side of module. Pinout Schematic Features: High Quality Module designed and built in the USA 16Mhz ATmega328P-AU core Micro-Controller Arduino Duemilanove Bootloader pre-loaded Tactile Reset Switch Physical: 33mm x 18mm (1.3" x 0.7") Connections for all GPIOs (including A6 and A7) Pin compatible with most 6-pin FTDI USB & serial breakout boards/cables. Supports RFM73 2.4GHz radio (mounts on bottom) Shields Available We have many shield board products for the mini, which can be used to easily and considerably expand the functionality. (Links below, TBD soon) 32-bit GPIO Expander — Adds additional 32 gpio's 12-bit x 16 ADC Input Expander — Adds an additional 16 ADC inputs. NOTE: Up to 5 boards can be stacked and used simultaneously for a whopping total of 80 ADC inputs. Environmental Sensors — Add temperature, humidity, pressure, RTC, memory, wireless radios, wifi, etc. 3-Axis Servo Controller — High Performance with 32bit encoder feeback on each axis 4-Axis Stepper Controller — with an extra 16 gpio's *To our valued customers:* We are adding content as quickly as possible, and there are still many products to be added. We appreciate your patience, and hope to have more offerings available for you as soon as possible. If there is anything in particular you are looking for, please let us know. We greatly appreciate any comments or suggestions you might have, as this helps us better serve you. We wish you the best of success in all your endeavors. Thank You! —Anarduino	Image above shows Anarduino Mini without radio

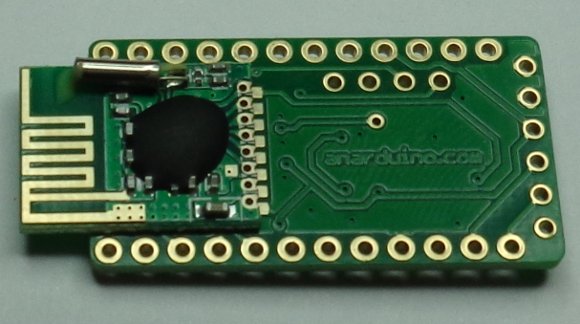

	Image below shows Mini with a 2.4Ghz RFM73 radio installed

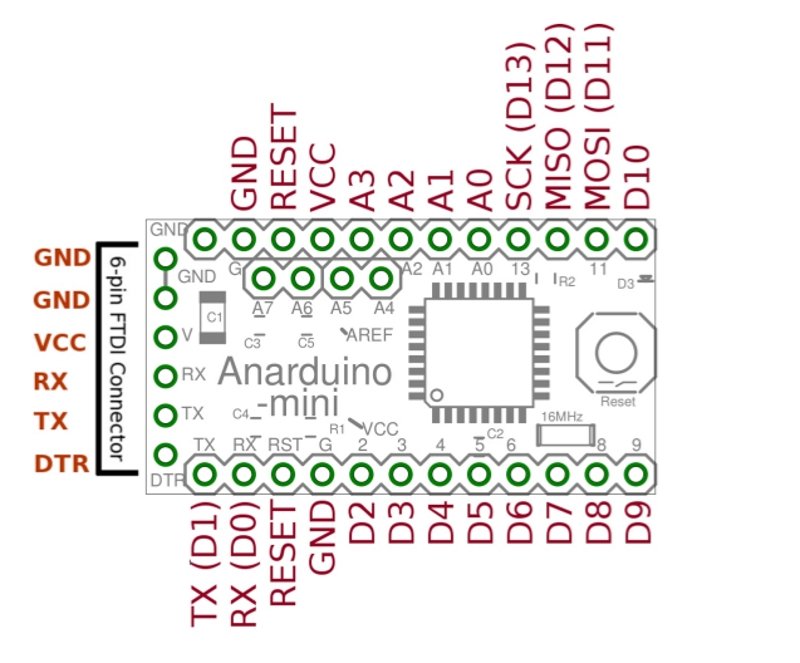

Pinout: Top of Page

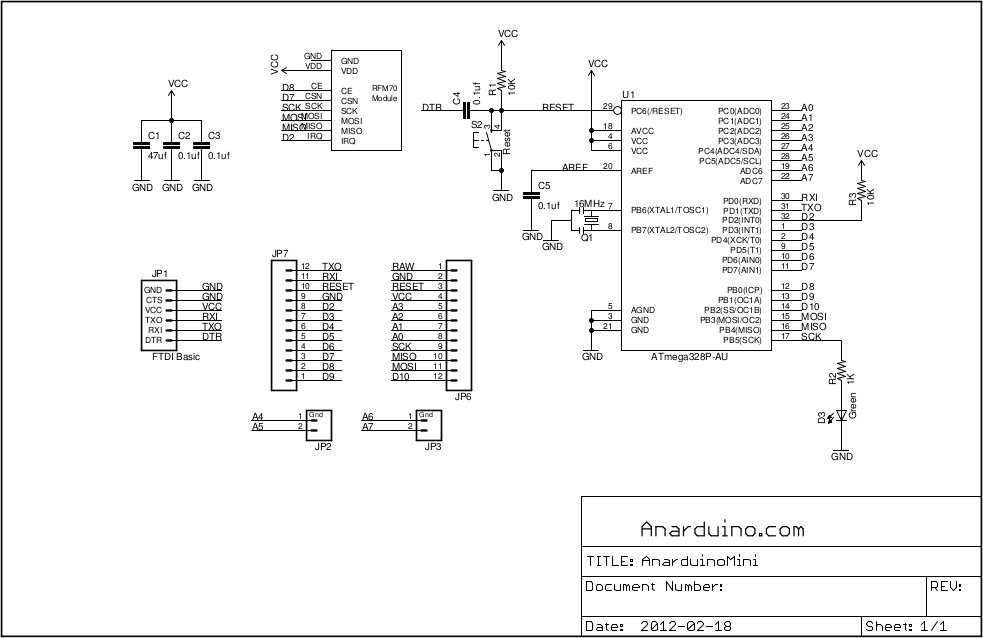

Schematic: Top of Page
